Product Details

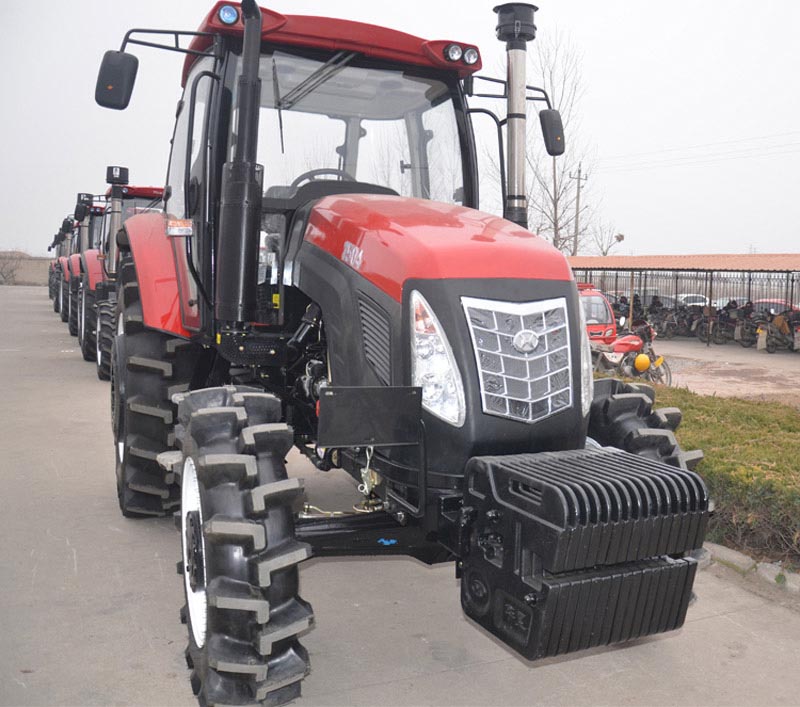

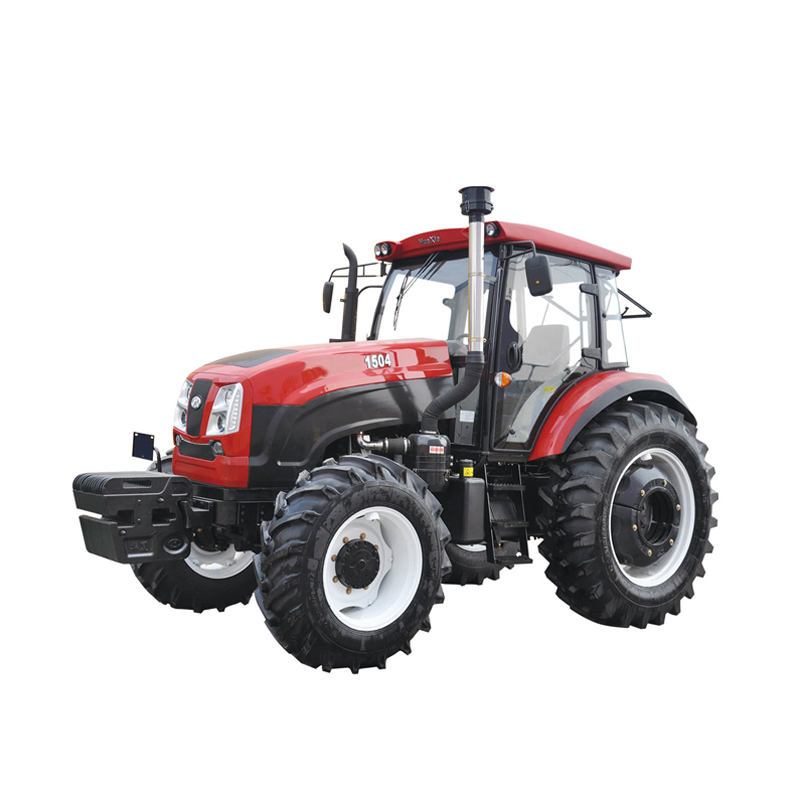

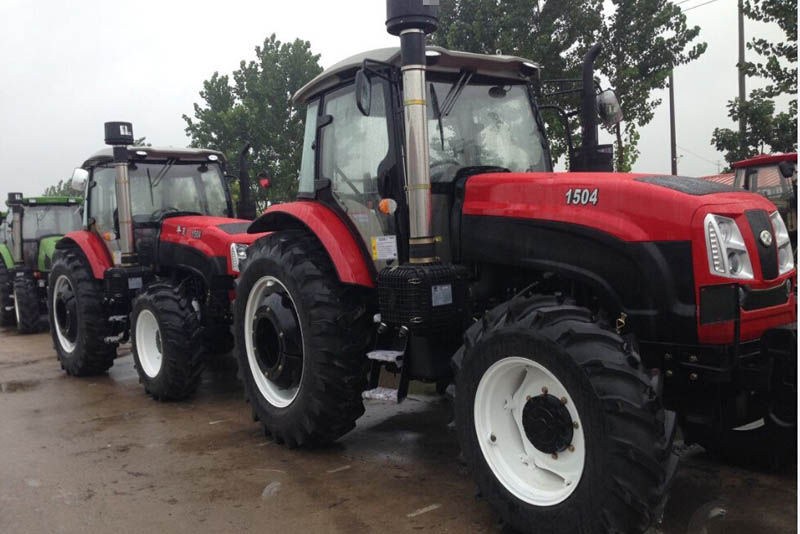

1504 Wheel Tractor HX 150HP Tractor
The series tractor is a versatile, high-horsepower agricultural tractors. The model has compact structure, convenient operation, flexible steering, traction, versatile and easy maintenance Characteristics, the series use the big model chassis, 4 wheel drive, 16R+8R gear box, hydraulic steering, double clutch, and the 3-point linkage is adjustable by floating way. The series can choose to equip the rool bar, hydraulic multi-valves, heater and AC cabin.
General specification:
| Products model | 1504 |
| Wheel drive | 4x4 |
| Dimension (L*W*H)mm | 5600x2345x2940 |
| Weight (KG) | 5700 |
| Front wheel tread(mm) | 1784,1792,1912,1954,2074,2082,2202 limited adjustable |
| R wheel tread(mm) | 1620-2420 unlimited adjustable |
| Wheel base(mm) | 2582 |
| Minimum land clearance(mm) | 480(front axle) |
| Gear shift | 16F + 8R |
| Tyre size | 14.9-26/1.84-38 |
Engine specification:
| Type | Water cooling,Vertical,4 Stroke,Direct Injection |
| Rated power(kw) | 110/110.3/111 |117 |
| Rated revolution (r/min) | 2200/2300/2400 |
| Start way | electricity start |
| Transmission box | 4x(2+1)x2 shifts |
| Clutch | Single,Dry Friction, Dual Stage Clutch |
| PTO speed(kw) | 8 spline 540/760 or 760/850 or 540/1000 |
