Product Details

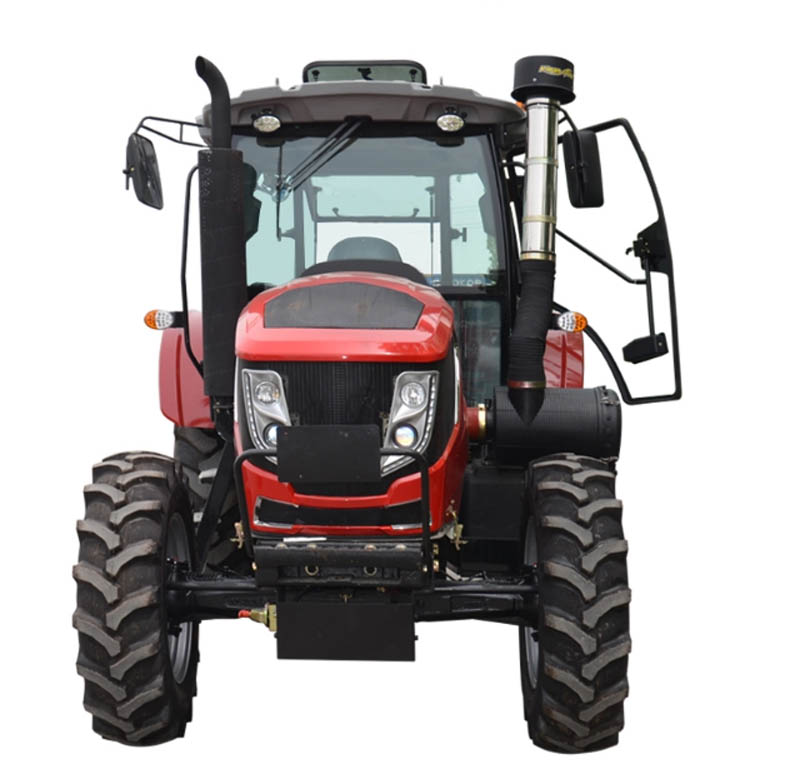

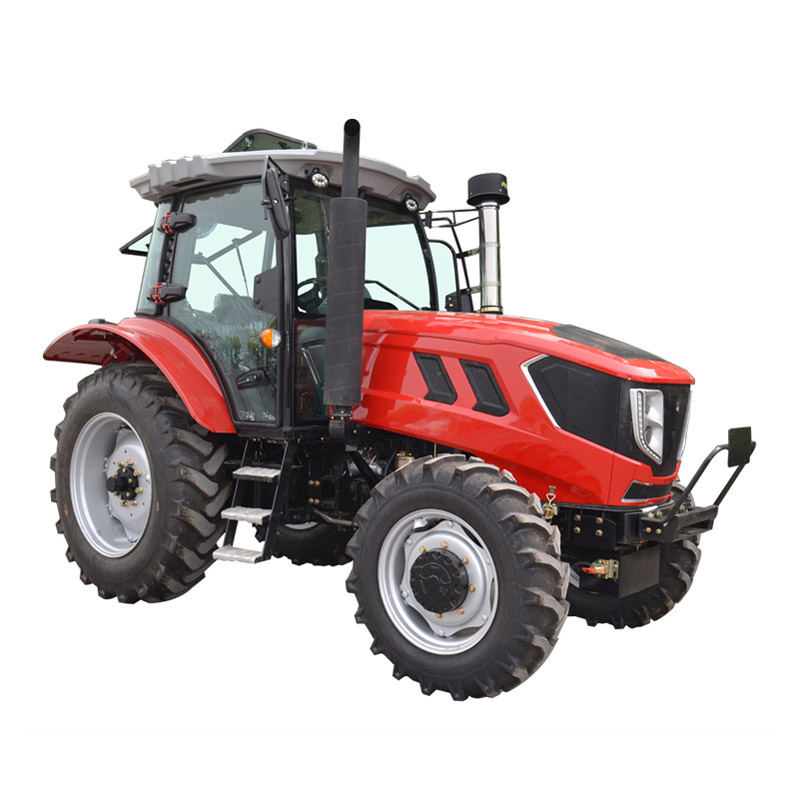

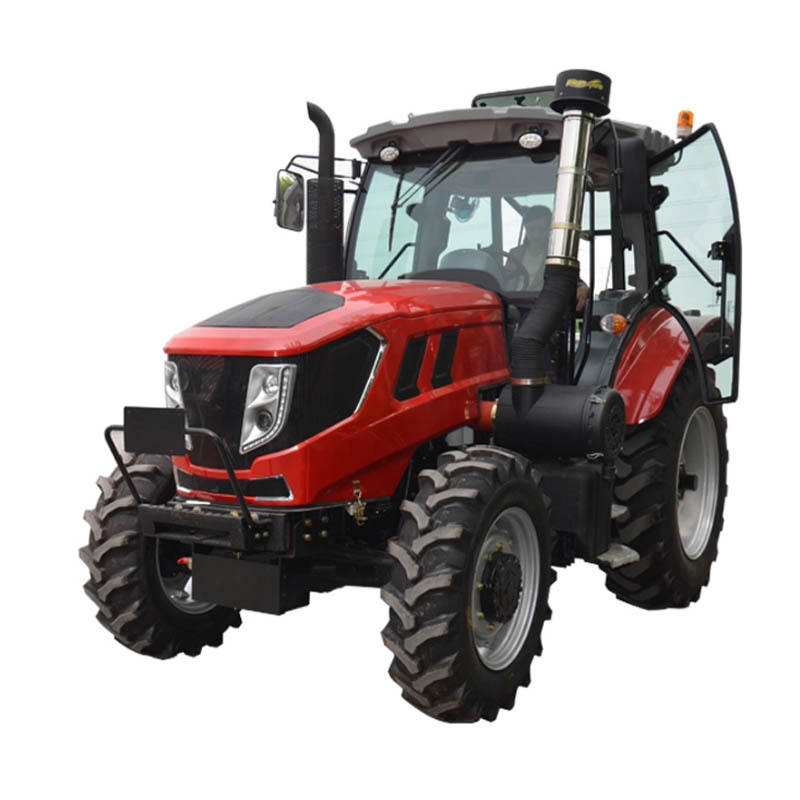

1404 Wheel Tractor 140PH Tractor
General specification:
| Products model | 1404 | |||||
| Horsepower | 85 | 95 | 110 | 120 | 150 | |
| Wheel drive | 4x4(4 x2) | |||||
| Dimension (L*W*H)mm | 4530 x2050 x2930(4530 x1980 x2630) | |||||
| Weight (KG) | 3690-3840 | |||||
| Front wheel tread(mm) | 1490、1580/1650/1740 limited adjustable | |||||
| R wheel tread(mm) | 1520/1620/1740/1850 adjustable | |||||
| Wheel base(mm) | 2195（1970） | |||||
| Minimum land clearance(mm) | 405（390） | |||||
| Gear shift | 16F + 8R | |||||

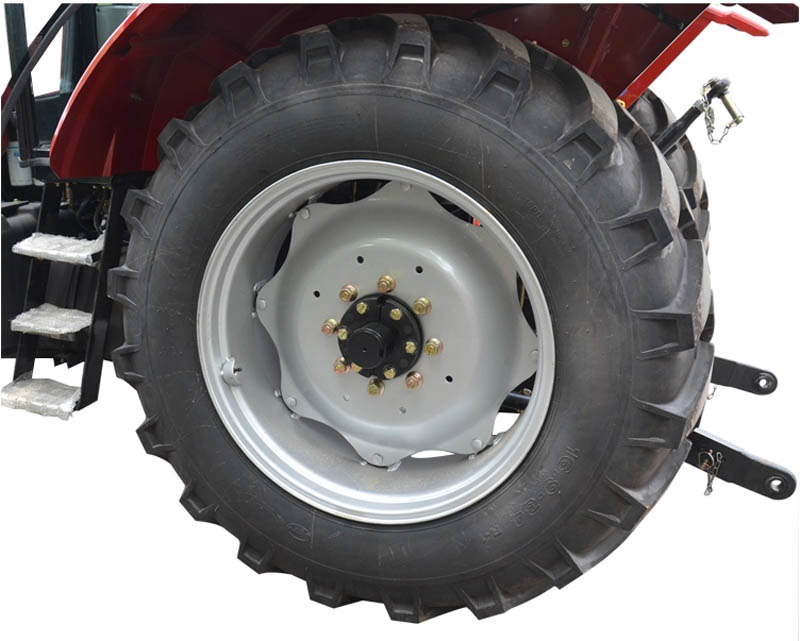

| Tyre size | 16.9-34/12.4-24（14.9-30/8.3-20） | |||||
Engine specification:
| Type | Water cooling,Vertical,4 Stroke,Direct Injection |
| Rated power(kw) | 62.5 / 69.9 / 80.9 / 88.2 110.3 |
| Rated revolution (r/min) | 2300/2400 |

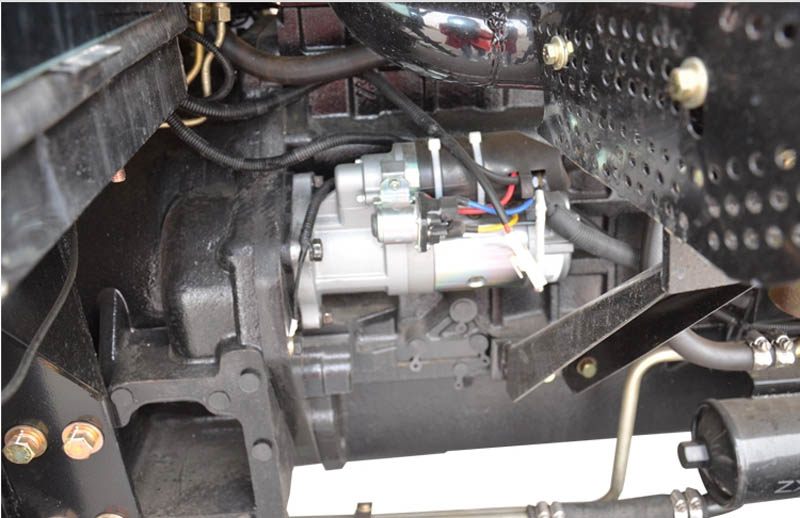

| Start way | electricity start |
| Transmission box | 4x(2+1)x2 shifts |
| Clutch | Dry Friction and double stage clutcj ,separate operation |
| PTO speed(kw) | 6 spline 540/760 or 760/850 |

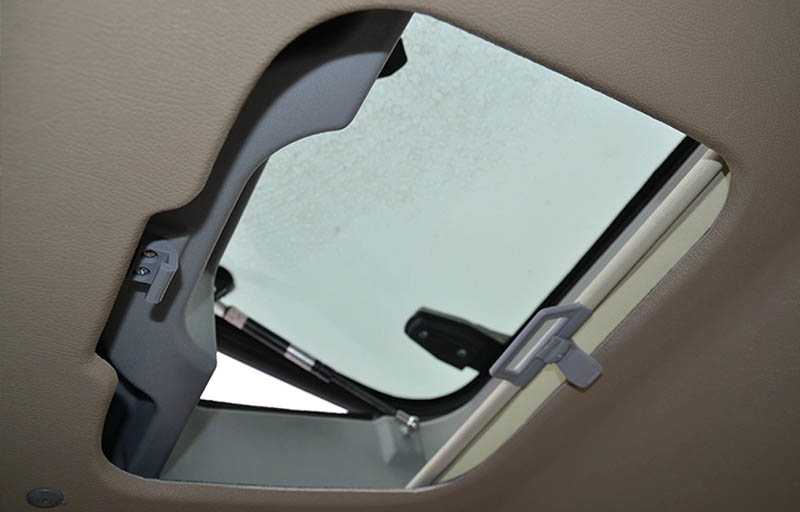

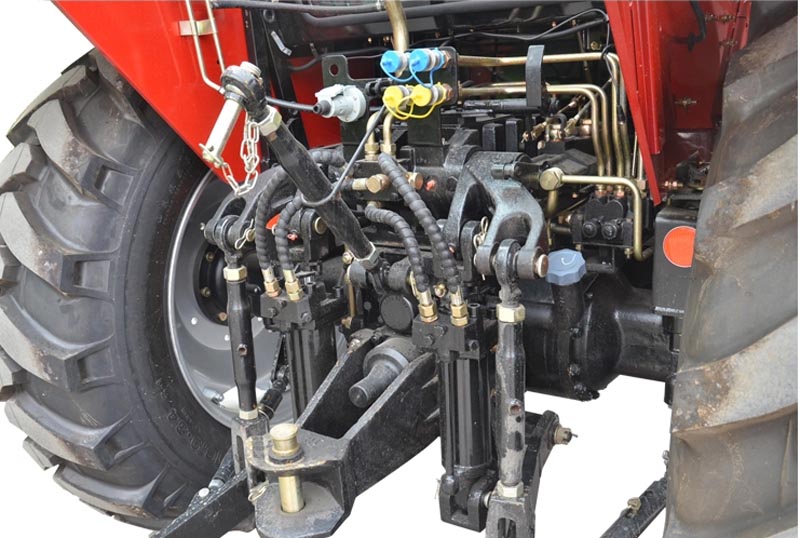

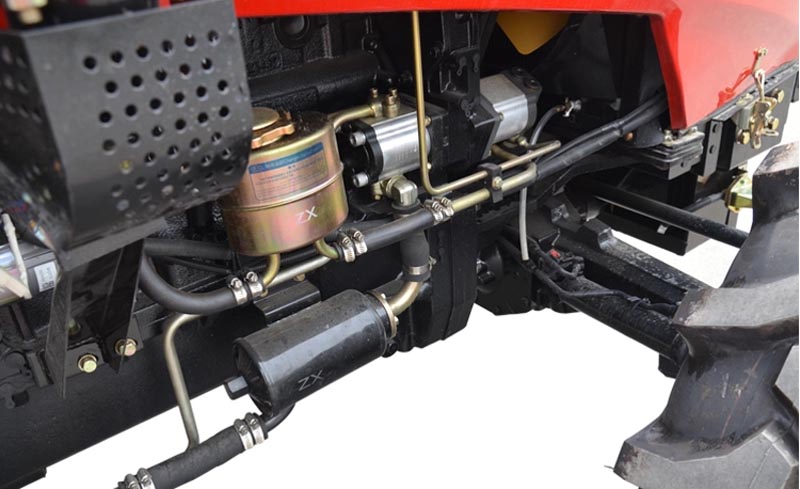

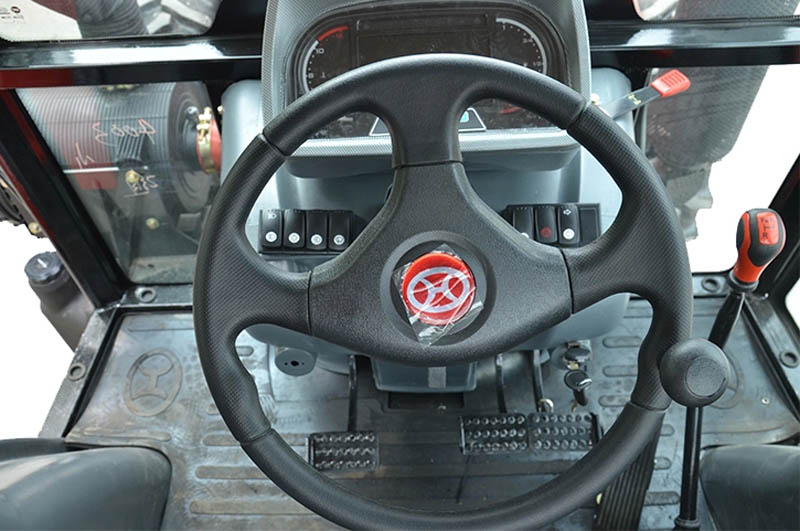

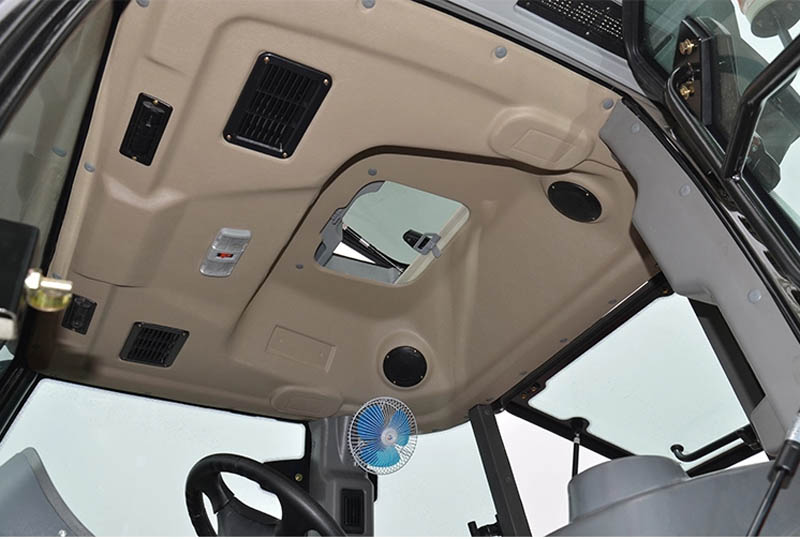

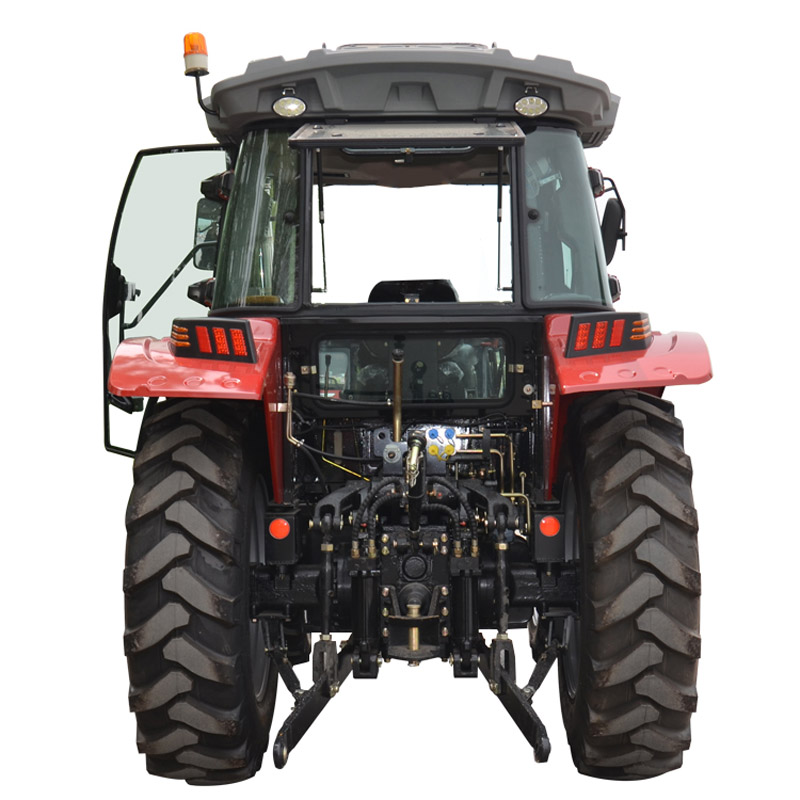

This series tractor is a versatile, high-horsepower agricultural tractors. The model has compact structure, convenient operation,flexible steering, traction, versatile and easy maintenance characteristics. The series use the TD chassis, 4 wheel drive, 16F+8R gear box, hydraulic steering, double clutch. The 3-point linkage is adjustable by floating way. The series can choose to equip the oil bar, hydraulic multi-valves, heater, and AC cabin.
