Furrow plough

It has a simple structure, large farming adaptation range, good quality work, smooth surface, good pulverizer performance, Ditches and other small features.

INQUIRY FEEDBACK

Product Details

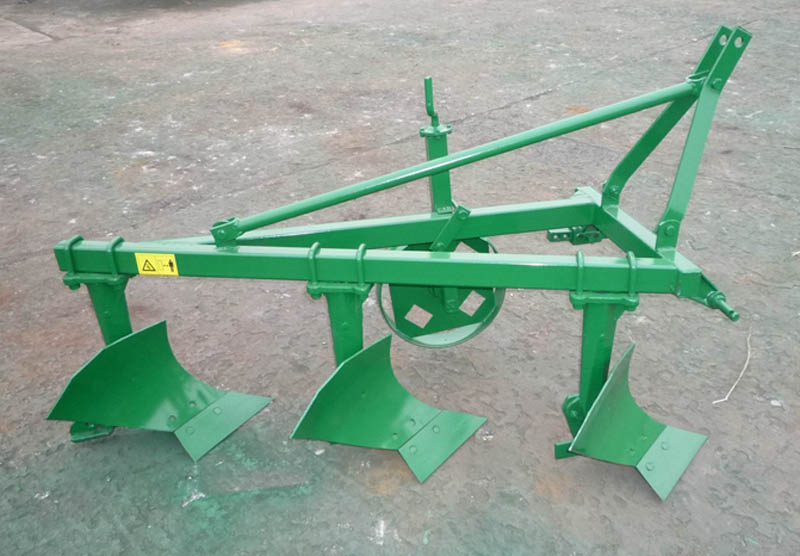

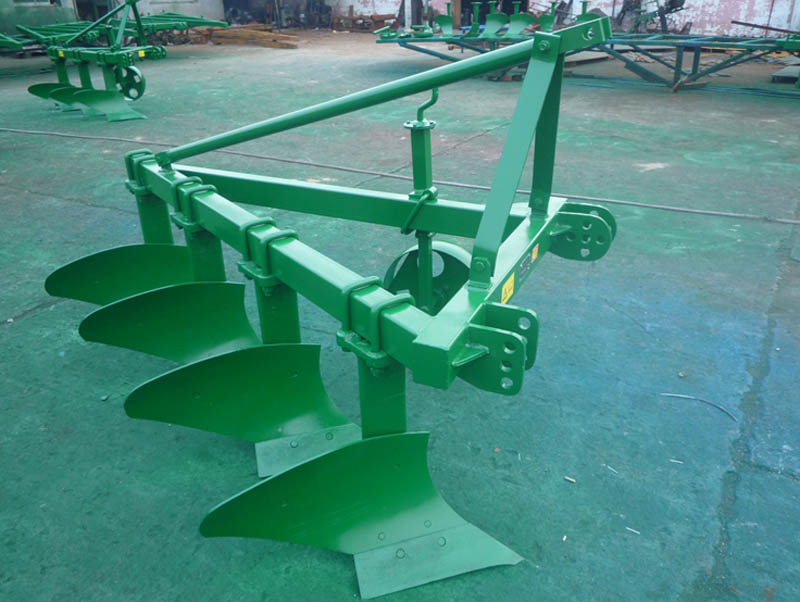

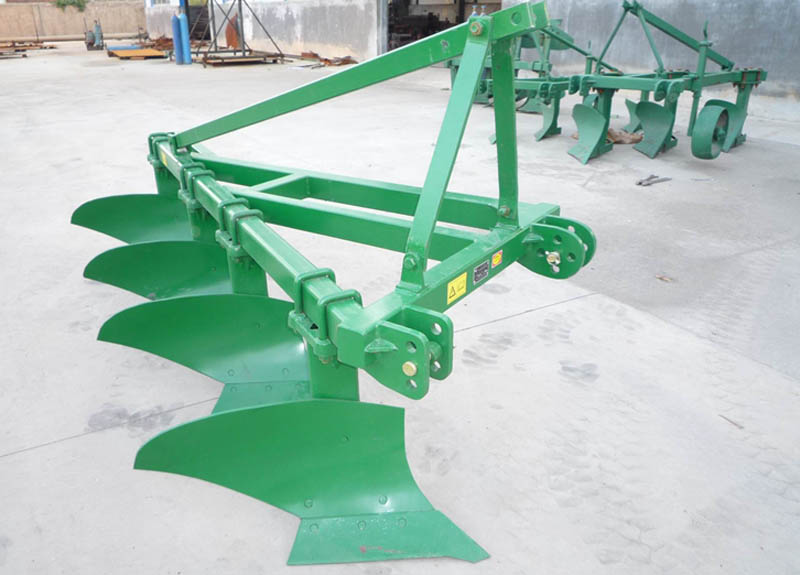

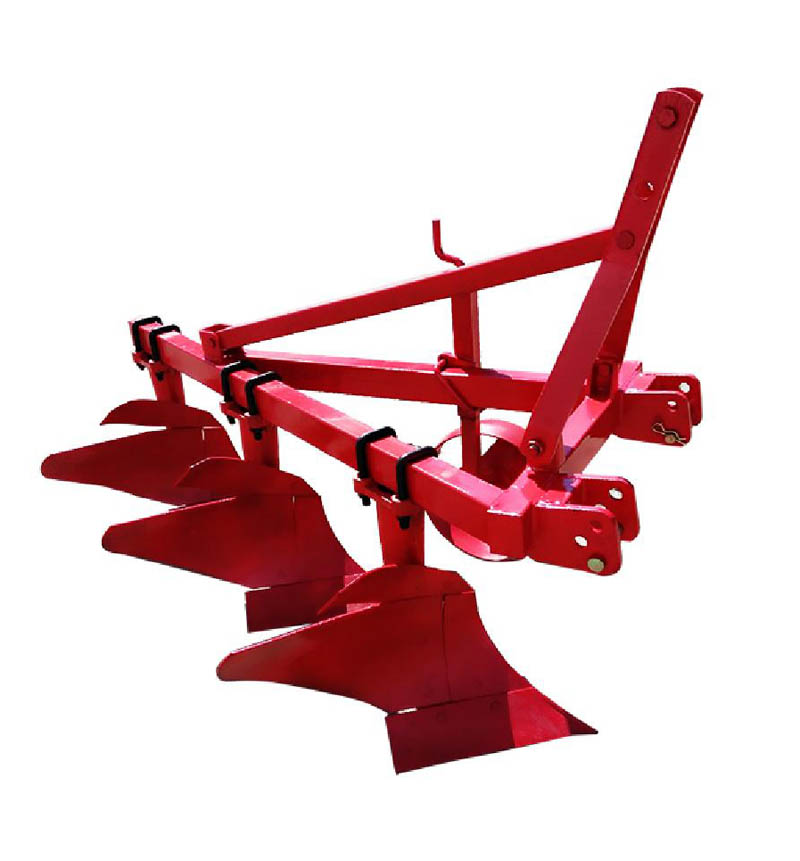

Furrow plough

This series is fully suspended plow plow for soil, sandy loam area foxglove upland farming. It has a simple structure, large farming adaptation range, good quality work, smooth surface, good pulverizer performance, Ditches and other small features.

Type	IL-220		IL-320		IL-420			IL-520		IL-620			IL-225		IL-325		IL-425			IL-525	IL-625			IL-725
Single ploughbody working width (mm)	200												250
Max. working width (mm)	400		600		800			1000		1200			500		750		1000			1250	1500			1750
Working depth	18-25
Matched power (hp)	12-20		25-35		30-35			40-50		55-70			25-35		30-45		40-50			55-80	80-100			90-120
Weight (kg)	68		122		148			185		230			120		158		195			255	340			390
Linkage	Standard three point mounted

Type	IL-227	IL-327		IL-427			IL-527		IL-627			IL-727		IL-230		IL-330			IL-430		IL-530			IL-630
Single ploughbody working width (mm)	270													300
Max. working width (mm)	540	810		1080			1350		1620			1890		600		900			1200		1500			1800
Max. working depth (mm)	150-240													200-350
Matched power (hp)	25-35	30-45		40-50			55-80		80-100			90-120		40-50		50-80			60-80		90-120			130-160
Weight (kg)	120	158		195			255		340			390		195		260			360		470			590
Linkage	Standard three point mounted

Type	IL-235					IL-335					IL-435							IL-535					IL-635
Single ploughbody working width (mm)	350
Max. working width (mm)	700					1050					1400							1750				2100
Max. working depth (mm)	200-350
Matched power (hp)	40-50					55-80					60-80							90-120				130-160
Weight (kg)	195					320					410							550				690
Linkage	Standard three point mounted
