Product Details

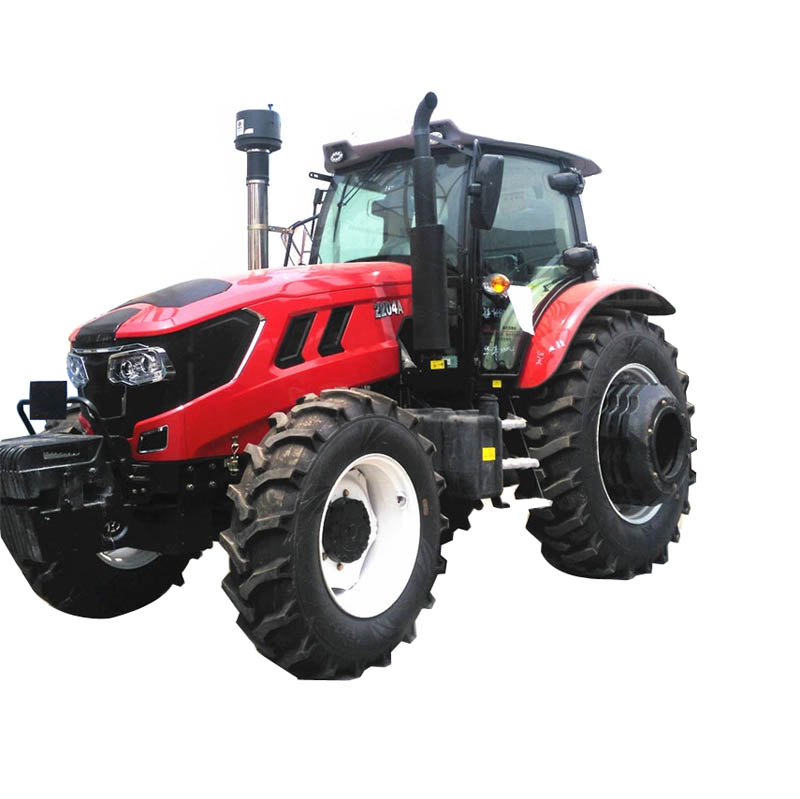

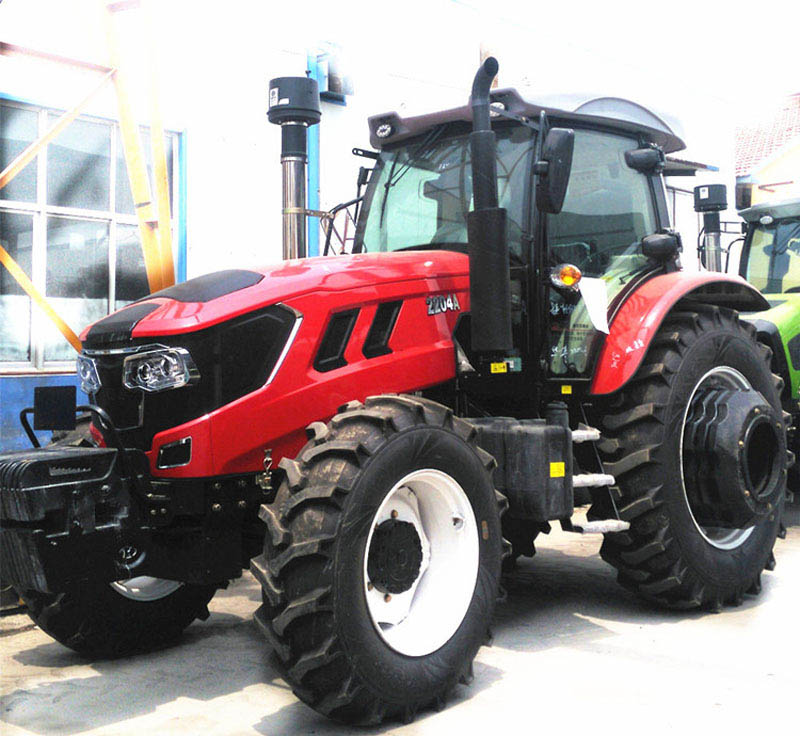

2204 Wheel Tractor 220HP Tractor
| Model | 2204 |
| Wheel Drive | 4*4 Four-Wheel Drive |
| Dimension(L*W*H)mm | 5400*2460*3140 |
| Weight(kg) | 7750 |
| Front wheel Tread(mm) | 1990 adjustable |
| Rear wheel(mm) | 1840-1910-1820adjustable |
| Minimum Land Clearance(mm) | 430 |

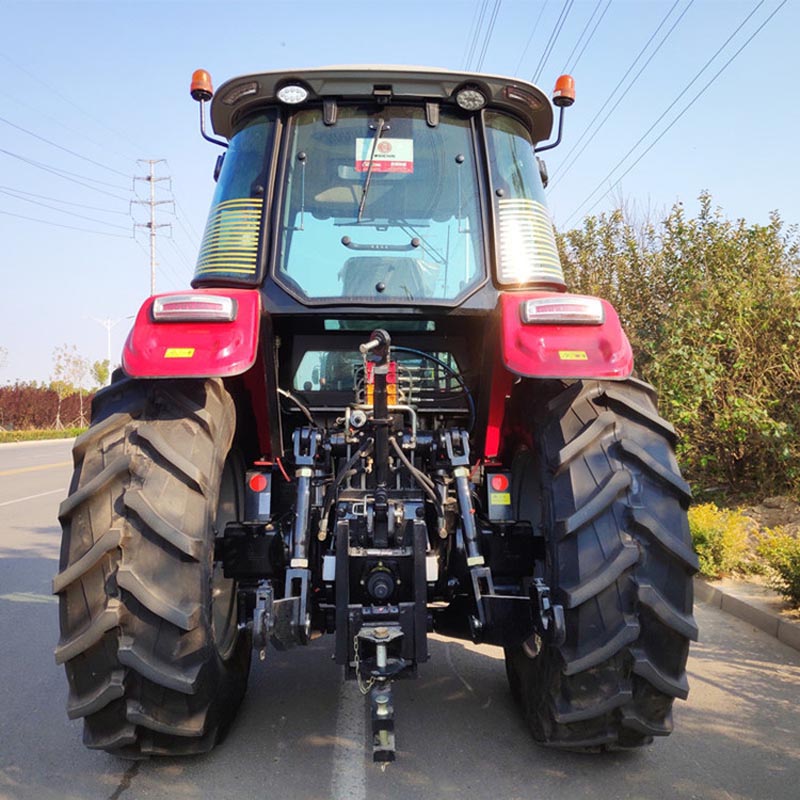

| Rear Suspension | Three-point Suspension |
| Engine Brand | Weichai / YTO |
| Engine Type | Water cooled Vertical,4 Stroke and Direct injection |
| Gear shifts | 16F+16R |
| Rated Power(KW) | 161KW |
| Rated Revolution(r/min) | 2300/2400 |
| Start Way | Electricity start |
| Transmission Box | 4x4x(1+1) shifts |
| Clutch | Single chip, Dry Friction and Double stage Clutch |
| PTO Speed | (6 spine ) 540/1000 or 760/850 |
The series tractor is versatile,high-horsepower agricultural tractors, the model has compact structure, convenient operation,flexible steering, traction, versatile and easy maintenance Characteristics,the series use the TG Chassis,4 wheel drive,16F+16R gear box,Hydraulic steering,double clutch, and the 3-point linkage is adjustable by floating way.the series can choose to equip the roll bar, hydraulic multi-valves,heater and AC cabin
